Used 2016 Dynamax Isata 5 35DS

Motor Home Class C

Stock #U2326P

Boise, ID

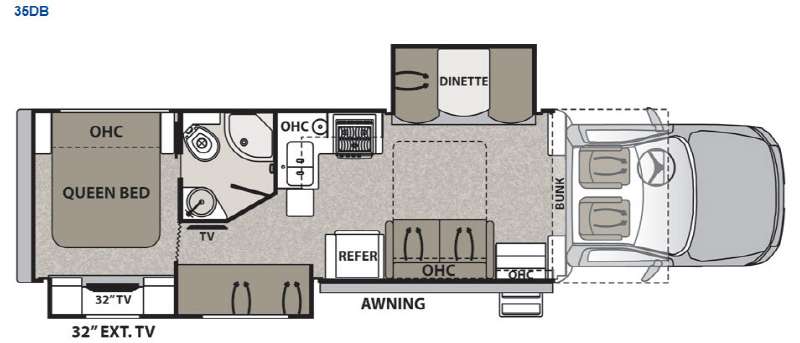

Floorplan - 2016 Dynamax Isata 5 35DB

1 of 1

Our Price: $149,995
List Price: $186,750
Discount: $36,755

Sleeps 9
2 Slides
Bunk Over Cab

Bunkhouse

See All Specs

Specifications

Sleeps	9	Slides	2
Hitch Weight	10000 lbs	GVWR	19500 lbs
Tire Size	225/70R19.5G	Furnace BTU	42000 btu
Fuel Type	Diesel	Engine	Cummins Turbo 325hp
Chassis	Ram 5500 SLT	VIN	VT215978

Features

Standard Features (2016)

Chassis

Ram® 5500 SLT Chassis; 6.7L I6 Cummins® Turbo Diesel 325hp/750 lb.-ft. of Torque
AISIN HD 6-Speed Automatic Transmission
GVWR: 19,500 lbs.
GCWR: 37,500 lbs.
Optional: Factory 4-Wheel Drive "On The Fly" Chassis (Long Lead Time)

Fuel Capacity: 74 Gallons (Dual Tanks)

8 Gallon Diesel Exhaust Fluid Tank

B-20 Bio Diesel Capability

Trailer Hitch (10,000 Tow lbs./1,000 Tongue lbs.) with 7-Way Round Tow Connection

Trailer Brake Control

Exhaust Brake

Ram® Active Air

Electronically Controlled Throttle

Ram® ESC Suspension And Stability

4-Wheel ABS

Cold Weather Group Package

Dual 80AH 12V Chassis Batteries

Emergency Start Switch

Dual 220-Amp Alternators (440 Amps Total)

Ram® 50KSI Chassis Construction

Steel Frame

Full-Coverage Rust-Prohibitive Heavy Duty Undercoating

4.88 Rear Axle Ratio

Daytime Running Lights

Running Boards

Front and Rear Tires: 225/70R19.5G All Position Front and Rear Traction

Front: 19.5″ x 6.0″ Polished Forged Aluminum Wheels

Rear: Dual 19.5″ x 6.0″ Polished Forged Aluminum Wheels

Remote Keyless Entry

Leatherette Reclining Captains Chairs - Driver and Passenger

ParkView™ Rear Back-Up Camera

Radio - 8.4″ LCD Touch Screen with U-Connect, Hands-Free Voice Command with Bluetooth, Sirius/XM Radio, Media Hub (SD, USB, AUX), Navigation-Capable; Six (6) Speakers

Temperature And Compass Gauge with Traveler/Mini-Trip Computer

12V and USB Accessory Ports

Cruise Control

Carpet Cab Mat

Adjustable/Tilt Steering Wheel

Heated/Remote Exterior Mirrors with Courtesy Lamps and Turn Signals

Power Windows and Locks

Three-Point Seat Belts - Driver and Passenger

Safety Air Bags - Frontal and Side Impact

Electronically Controlled Dash Air Conditioning

Drink Holders

Construction

2″ Aluminum Framed, Laminated Sidewalls
Gel-Coat Fiberglass Skin with Azdel Backer
2″ Aluminum Framed Floor
Aluminum Truss-Structured Roof
Fiberglass Roof

Front Fiberglass Cap and Transitions

Stylish Rear Fiberglass Cap

R-8 Insulated Sidewalls; R-19 Insulated Roof; R-8 Insulated Floor

Automatic Power Hydraulic Leveling Jacks

Dark-Tinted, Frameless Windows

Seamless Easy-Clean Rotocast Storage Compartments

Electric Slide System

Exterior

Premier Full Body Paint Package with Diamond Shield
Side-Mounted, Armless, Dual Pitch Patio Awning with LED Lighting and Motion-Activated Retraction
LED Exterior Patio Light
Slideout Toppers
Radius-Top Entry Door with Deadbolt Lock; Frameless Window with Shade

Lighted, Acrylic Entry Grab Handle

Exterior Power Entry Step

Exterior Wall-Mounted Entertainment Center with 32″ LED TV, AM/FM/CD/DVD Radio

Side-Hinged, Locking Exterior Storage Doors with Paddle Latches

Front and Rear LED Clearance and Marker Lighting

Interior

Sofa with Fold-Over Bed
Wrap-Around Booth Dinette
Front Cab-Over Bunk Area with Mattress (54″ x 80″)
Beauflor® Premium Vinyl Flooring
Deluxe Carpet with Pad (Slideout)

Soft-Touch Vinyl Ceiling

LED Recessed Ceiling Lighting

Coordinating Fabric Valances with Quick Change Fabric Panels

Day and Night Roller Shades

Cherry Vinyl-Wrapped Stile Cabinets with Hardwood Raised Panels Doors

Hidden Hinge Cabinet Door Hardware

Full Extension, Soft-Close Drawer Guides

Lighted Entry with Non-Skid Rubber Steps and Risers

Heat Shield Front Privacy Shades

Privacy Curtain for Cab-Over Bunk

Blu-Ray® Home Theater AM/FM/CD/DVD Sound System (Living Area)

39″ LED TV with Full-Function Remote, Antenna, Booster and Jack (Living Area)

Optional: Front Entertainment Center with 50″ LED TV with Full-Function Remote in Cab-Over Bunk

Kitchen

Residential Refrigerator: Stainless Steel 16.0 cu. ft. Double-Door with Icemaker
3-Burner (Sealed) Gas Range with Glass Cover
Convection Microwave Oven
Solid Surface Galley Top
Tile Backsplash

Under-Mount Sink

Solid Surface Sink Covers

Residential Faucet

MaxxAir® Power Vent with Rain Cover

Kitchen Pull Out Trash Can

Bedroom

King Mattress (66.5″ x 75″) with iCool® Sleep System (Gel-Infused Memory Foam)
Lift-Up Bed with Under-Bed Storage
Designer Bedspread, Pillow Shams, and Pillows
Hardwood Wardrobe Doors with Mirrors and Lighting
LED Reading Lights

32″ LED TV (Bedroom)

Deluxe Carpet with Pad

MaxxAir® Power Vent with Rain Cover

Optional: Beauflor® Premium Vinyl Flooring in Bedroom

Bathroom

ABS Shower
Shower Skylight
Glass Shower Door
Metal Shower Head with On/Off and Matching Faucet
Porcelain Macerator Electronic-Flush Toilet

Residential High-Rise Vanity Faucet with Glass Vessel Sink

MaxxAir® Power Vent with Rain Cover

Utilities

Dual 12V Group 31 AGM Auxiliary Batteries
Optional: Four (4) 12V Group 31 AGM Auxiliary Batteries
Battery Disconnect
50-Amp Service
2000 Watt Pure Sine Wave Inverter with Charger

Onan® 6 kW Diesel Generator with Auto Transfer Switch

Optional: Onan® 8 kW Diesel Generator with Auto Transfer Switch

Automatic Generator Start

Dual Air Conditioners: Roof-Mount and Ducted 15,000 BTU with Heat-Pump

Furnace: 42,000 BTU LP with Electronic Ignition

Remote Thermostatically Controlled Heating and Cooling

Tankless, On-Demand Water Heater

Water Purification System (Whole Coach)

20.3 Gallon LP Tank (WC)

LP Quick Connect

Interior Monitor Panel with LPG/Tank/Battery Readout

Exterior Shower (Stainless Steel Head, Hose and Valve)

Exterior GFCI Receptacle

Jack® Digital Antenna with LED Signal Strength Indicator

Service Bay Cable TV/Satellite Hookup

Prep for Roof-Mounted Satellite Dish (Backer Only)

Black Tank Flush

Furnace Heated Fresh and Holding Tank Compartments

12V High-Capacity, On-Demand Water Pump

Carbon-Monoxide, LP Gas, and Smoke Detectors

Fire Extinguisher

Solar Prep

Optional: Dual 100W Roof-Mount Solar Panels with 30-Amp Controller

See us for a complete list of features and available options.

All features and specifications are subject to change.
